1/35 Sturmpanther II
Removed by original poster on 08/16/17 - 12:41:08 (GMT).
darklen
Visit this Community
Alberta, Canada
Joined: September 16, 2003
KitMaker: 69 posts
Armorama: 67 posts
Posted: Tuesday, May 30, 2017 - 07:31 AM GMT+7
Sorry for the delay. The project was put on hold while I waited for some silicone brick moulds and insignia decals to arrive. To date, neither have despite multiple ordering attempts. I just finished making my own brick moulds this last weekend and finally have a tracking number for the decal so I hope to get this off my plate soon!
leffegnu
Visit this Community
Sweden
Joined: January 04, 2016
KitMaker: 21 posts
Armorama: 21 posts
Posted: Sunday, May 28, 2017 - 04:44 AM GMT+7
WE WANT UPDATE!
DazzaD
Visit this Community
South Australia, Australia
Joined: June 17, 2007
KitMaker: 231 posts
Armorama: 228 posts
Posted: Tuesday, February 21, 2017 - 03:12 PM GMT+7
Looks fantastic. The tank really fits the scene well after the weathering. Great job on the scenery too, very realistic.
Steven000
Visit this Community
Antwerpen, Belgium
Joined: August 07, 2016
KitMaker: 191 posts
Armorama: 120 posts
Posted: Tuesday, February 21, 2017 - 02:00 PM GMT+7

Quoted Text

I'm not a big fan of every Paper Panzer, or projected, but not manufactured tank...but I like what you've done with this one.



I second that nice project, I also like the construction of your building.

Goodluck & kind regards
Steven
ahandykindaguy
Visit this Community
Alberta, Canada
Joined: August 20, 2008
KitMaker: 1,201 posts
Armorama: 1,110 posts
Posted: Tuesday, February 21, 2017 - 01:42 PM GMT+7

Quoted Text

Just an FYI, I'm still alive, just been really ill. All better now so I've been working on the figures and hope to have a update later this week. Thanks for your patience.



Glad to know you're doing better, and that you are still working on this. It's a cool subject, as far as I'm concerned. I'm not a big fan of every Paper Panzer, or projected, but not manufactured tank...but I like what you've done with this one.

darklen
Visit this Community
Alberta, Canada
Joined: September 16, 2003
KitMaker: 69 posts
Armorama: 67 posts
Posted: Tuesday, February 21, 2017 - 07:37 AM GMT+7
Just an FYI, I'm still alive, just been really ill. All better now so I've been working on the figures and hope to have a update later this week. Thanks for your patience.
darklen
Visit this Community
Alberta, Canada
Joined: September 16, 2003
KitMaker: 69 posts
Armorama: 67 posts
Posted: Wednesday, January 18, 2017 - 03:46 PM GMT+7
Moving on, Did dot filtering on the hull sides using white, yellow, blue and green artist oils and a wide flat brush dampened with paint thinner. Just drag it down and off until I got the effect I wanted. When dry, I'll seal and then do the same with a rust dot filter.





Going to the Miniart ruin. I scratch built a floor from balsa wood and Popsicle sticks. Painted with an array of Vallejo Environmental Effects. Then figured it was missing something. A ceiling! Added old school lathe & plaster starting with some Evergreen 0.10 x 0.40 strip for the lathe, glued on with CA. Once done, I painted quickly with Tamiya XF-57 Buff. Once that was dry, I put a thin coat of drywall mud, let that dry and put on a second coat. Once all that had set up over night, I lightly sanded the dried mud, "damaged" the exposed sections with tweezers, pliers, fingers, etc., to get the effect I wanted. Finally, staining it with various concentrations of tea and coffee.

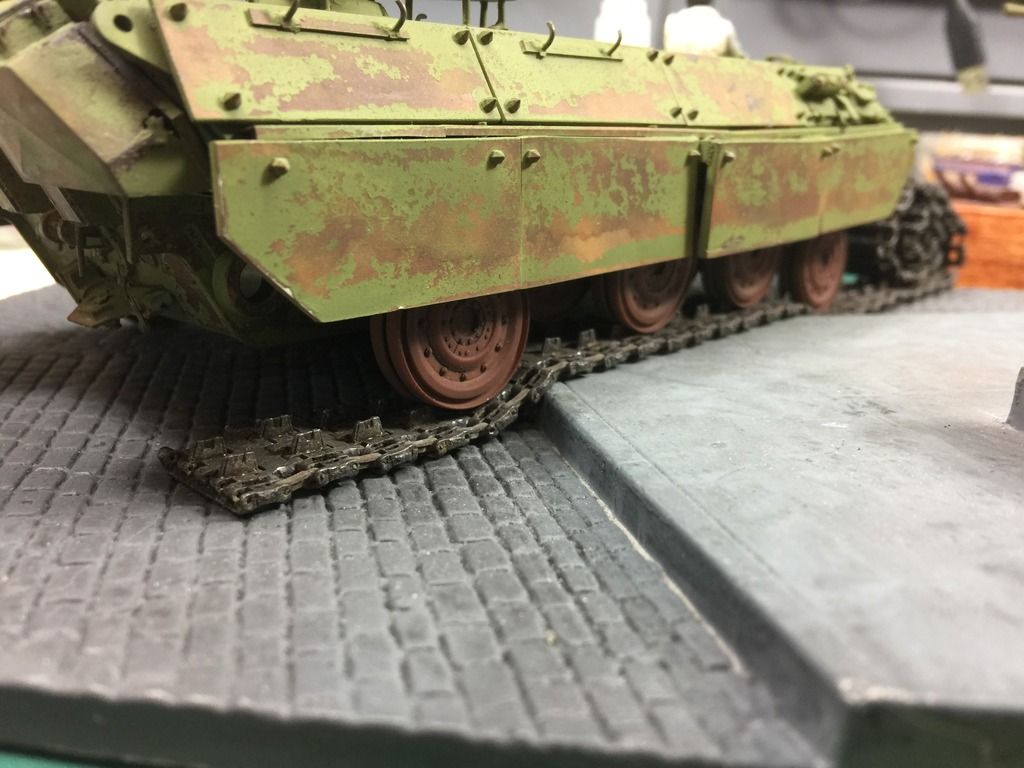

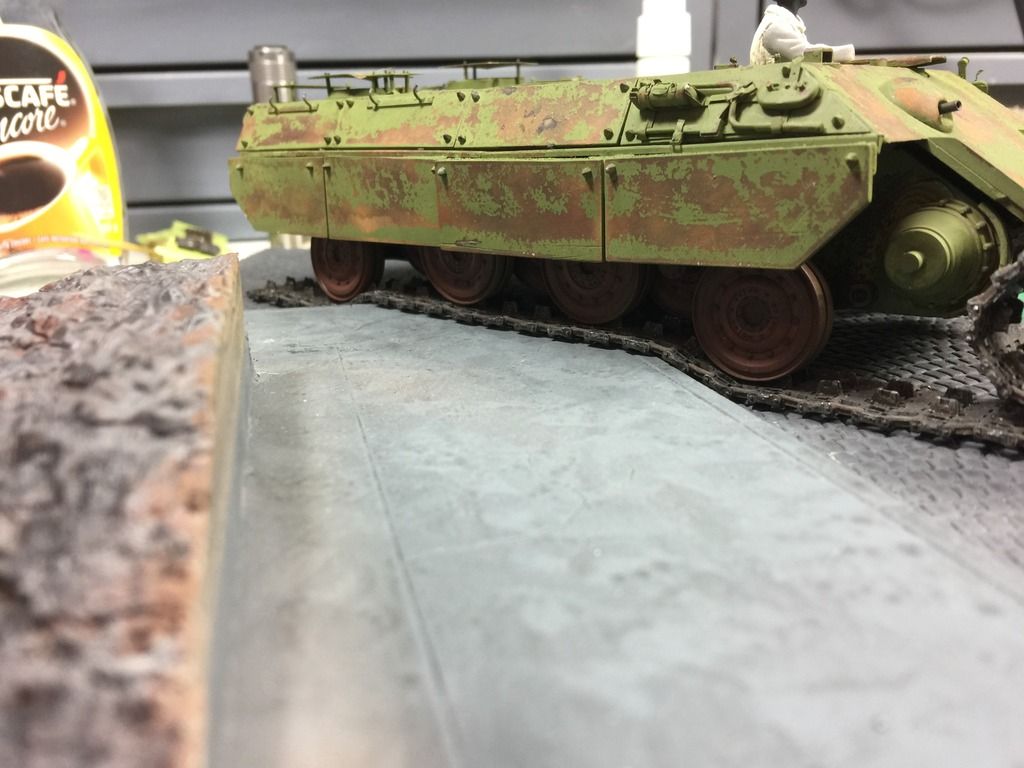

And, finally some additional shots of the finished suspension with the upper hull and tracks fitted. Still ots of ground work to do.


crossracer
Visit this Community
Delaware, United States
Joined: April 26, 2005
KitMaker: 117 posts
Armorama: 116 posts
Posted: Wednesday, January 11, 2017 - 01:10 AM GMT+7
Seriously great looking build, I love what if builds.
Thirian24
Visit this Community
Oklahoma, United States
Joined: September 30, 2015
KitMaker: 2,403 posts
Armorama: 2,255 posts
Posted: Tuesday, January 10, 2017 - 02:07 PM GMT+7
Lookin great!
darklen
Visit this Community
Alberta, Canada
Joined: September 16, 2003
KitMaker: 69 posts
Armorama: 67 posts
Posted: Tuesday, January 10, 2017 - 01:53 PM GMT+7

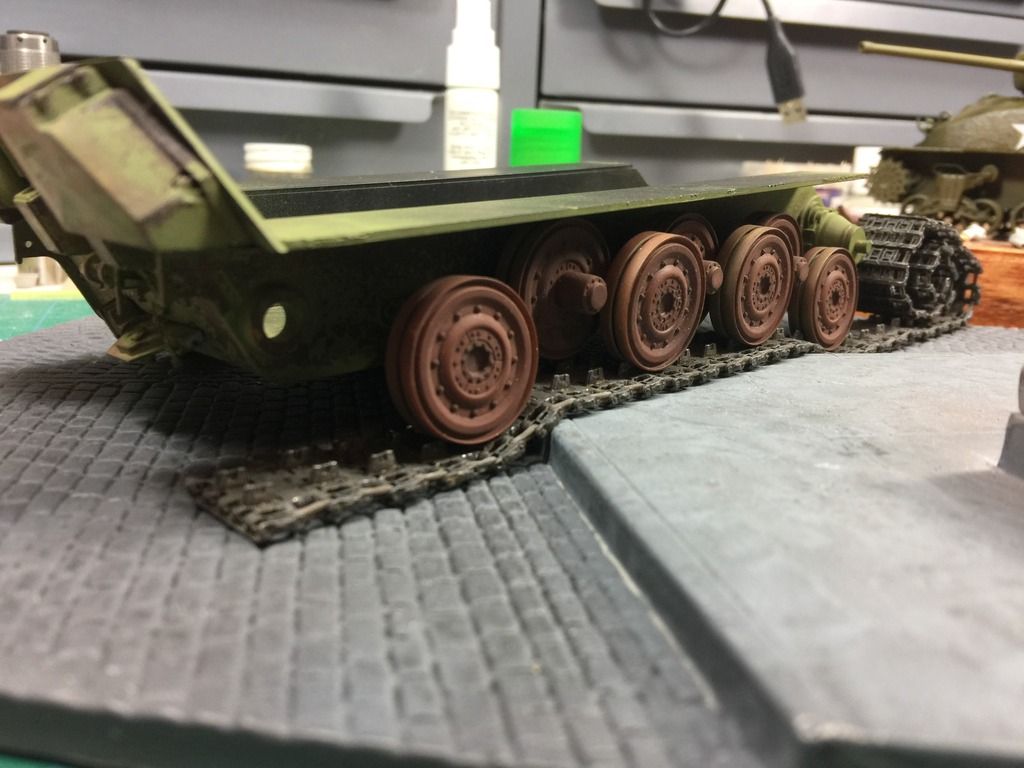

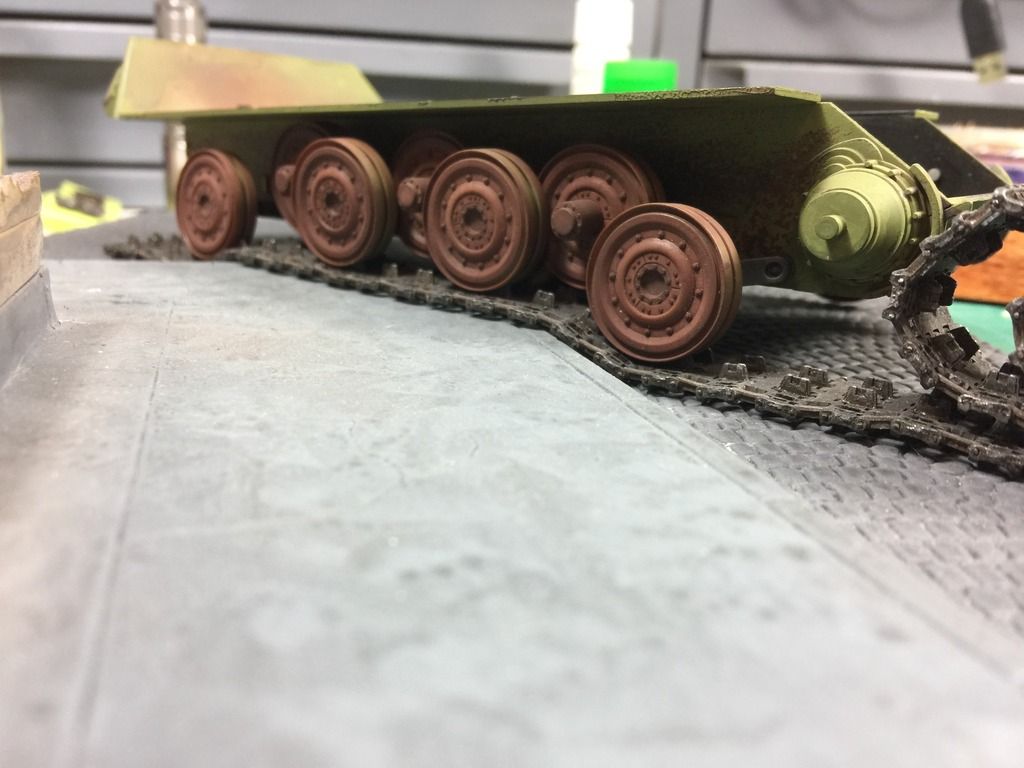

Finally got some time to work on the articulated suspension and groundwork started. Because of the articulated suspension and the fixed heavy armored skirts, the groundwork has to be done first to make sure the suspension matches it. Once that's done, the tracks can be fitted, then the upper hull attached to the lower. The sidewalk side of the suspension was done first. The swing arms lock in to the lower hull with a pin to keep them all level. Turns out, placing the swing arms on top of the pins makes them the right height to be level on the sidewalk. Once those were set. I figured out where I wanted the debris pile the other side was to be on to go and cut the pins off the affected swing arm points completely and leveled them to the pile while leaving the front and some of the rear swing arms in the stock, pinned position.

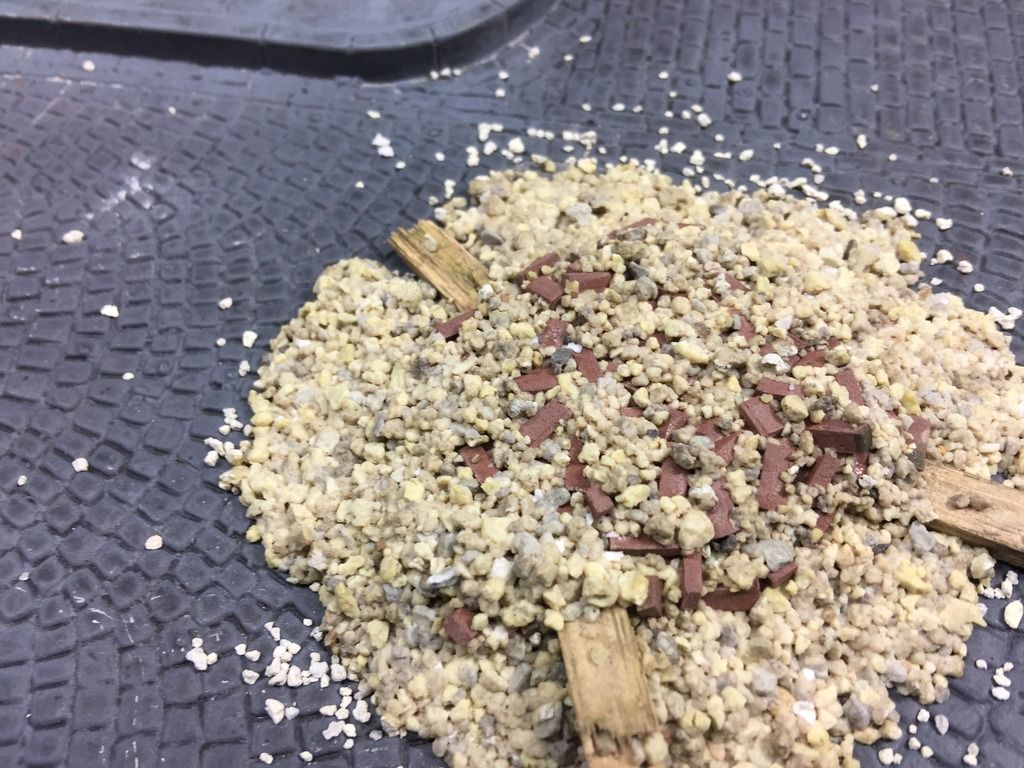

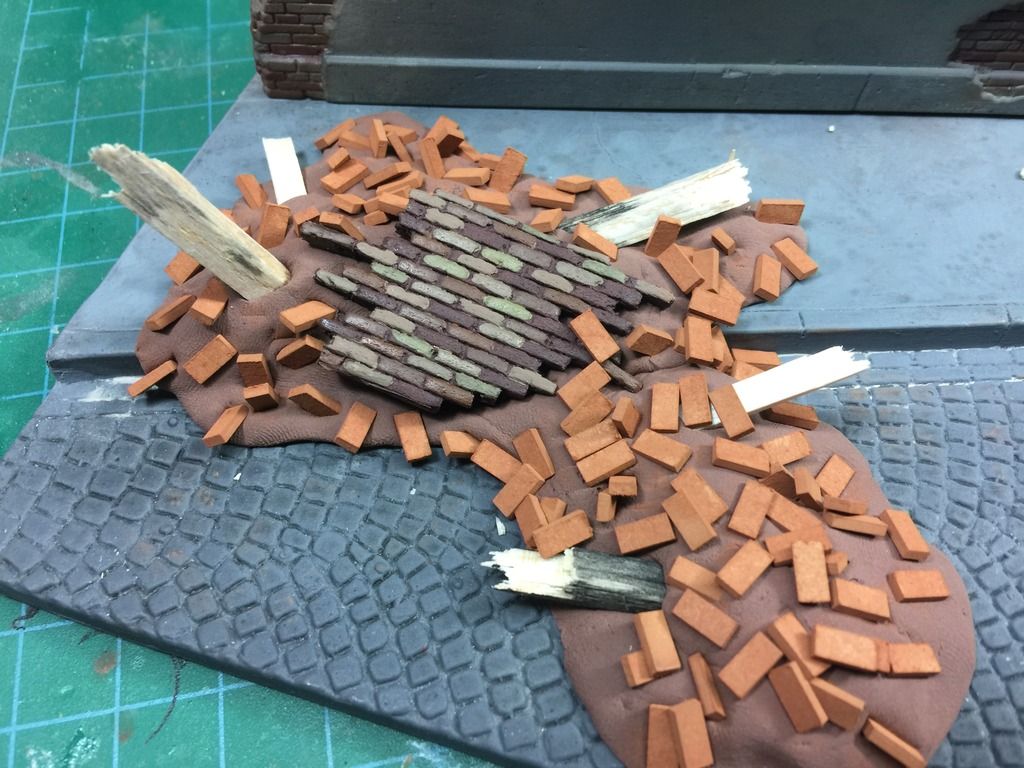

The groundwork is a "clay" made by Crayola called "Model Magic". It's a soft, non sticky (not so much) modelling clay like substance that is supposed to air dry in 72 hours but it was still soft after a week. Some of the bricks were made with this stuff while others were from a batch I got off eBay from Russia. Those turned out to be some type of pressed paper. The wood is just snapped up bits of balsa that'll get painted when done and the little chunks of debris is cat litter glued down with watered down white glue. The broken brick panel was made from a bit of Styrofoam. I saw the technique on a YouTube terrain makers channel. The two piles without the cat litter were just set up. Once they're dry, they'll get the litter treatment as will the rest of the road and sidewalk. The litter is still a bit damp in the picture but I also mixed a little Tamiya Buff in the glue mix to see how the color would look when dry.















jimz66
Visit this Community
Connecticut, United States
Joined: December 15, 2006
KitMaker: 1,159 posts
Armorama: 1,104 posts
Posted: Friday, December 16, 2016 - 06:24 PM GMT+7
Very nice project. Looking very good.
darklen
Visit this Community
Alberta, Canada
Joined: September 16, 2003
KitMaker: 69 posts
Armorama: 67 posts
Posted: Thursday, December 15, 2016 - 06:14 AM GMT+7
Got the rest of the tank scrubbed. Guess I didn't layer the Dull coat on well enough in some spots as the over, base and primer coats all came off. The armoured shield on the back will just be bare, rusted metal.

darklen
Visit this Community
Alberta, Canada
Joined: September 16, 2003
KitMaker: 69 posts
Armorama: 67 posts
Posted: Monday, December 12, 2016 - 04:43 PM GMT+7
Paint is on. 60/30 mix of Tamiya NATO Green and Buff. Once the paint dried for a few hours, I painted on some water, waited it to soak through the paint to the hair spray, then scrubbed with a toothbrush. Lower hull took maybe three minutes of scrubbing to get to this point.




Thirian24
Visit this Community
Oklahoma, United States
Joined: September 30, 2015
KitMaker: 2,403 posts
Armorama: 2,255 posts
Posted: Tuesday, November 29, 2016 - 05:17 PM GMT+7
Looking killer.
darklen
Visit this Community
Alberta, Canada
Joined: September 16, 2003
KitMaker: 69 posts
Armorama: 67 posts
Posted: Tuesday, November 29, 2016 - 04:54 PM GMT+7
Ok, back in the saddle. I managed to get the Panther II Early project done and can go full steam on this one. I've got the rust undercoat done. Ičll let it dry for a few days before sealing it and then doing the top coat of green and then chipping.




darklen
Visit this Community
Alberta, Canada
Joined: September 16, 2003
KitMaker: 69 posts
Armorama: 67 posts
Posted: Monday, October 24, 2016 - 09:56 AM GMT+7
Sorry, no. I've kinda lost my mojo for a bit. Trying to get the Panther II early dio done as it's so close to being done you can taste it. I've got a Miniart dio base assembled and partially painted as well as a completed Miniart Societ lumber ready to go for the scene. Trying to get the appropriate figures sourced as well. Hope to have something coming up soon.
Thirian24
Visit this Community
Oklahoma, United States
Joined: September 30, 2015
KitMaker: 2,403 posts
Armorama: 2,255 posts
Posted: Saturday, October 22, 2016 - 04:58 PM GMT+7
Hey Bob,

I was curious to see if you've made any filter her progress on this? You work always sticks out in my mind and has me tempted to try my hand at doing some stand off armor.

Paint looks good btw.
darklen
Visit this Community
Alberta, Canada
Joined: September 16, 2003
KitMaker: 69 posts
Armorama: 67 posts
Posted: Monday, September 26, 2016 - 05:21 PM GMT+7

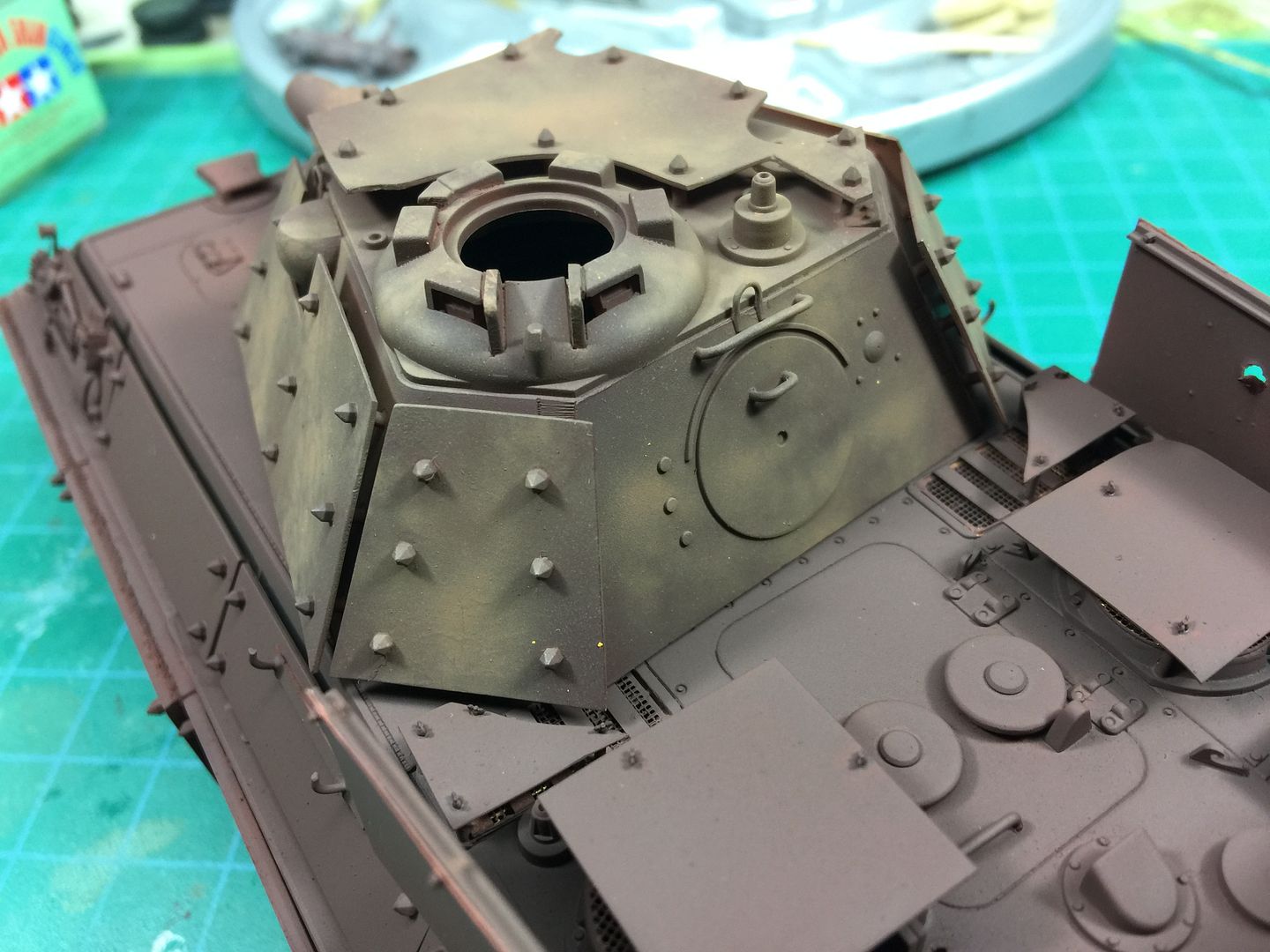

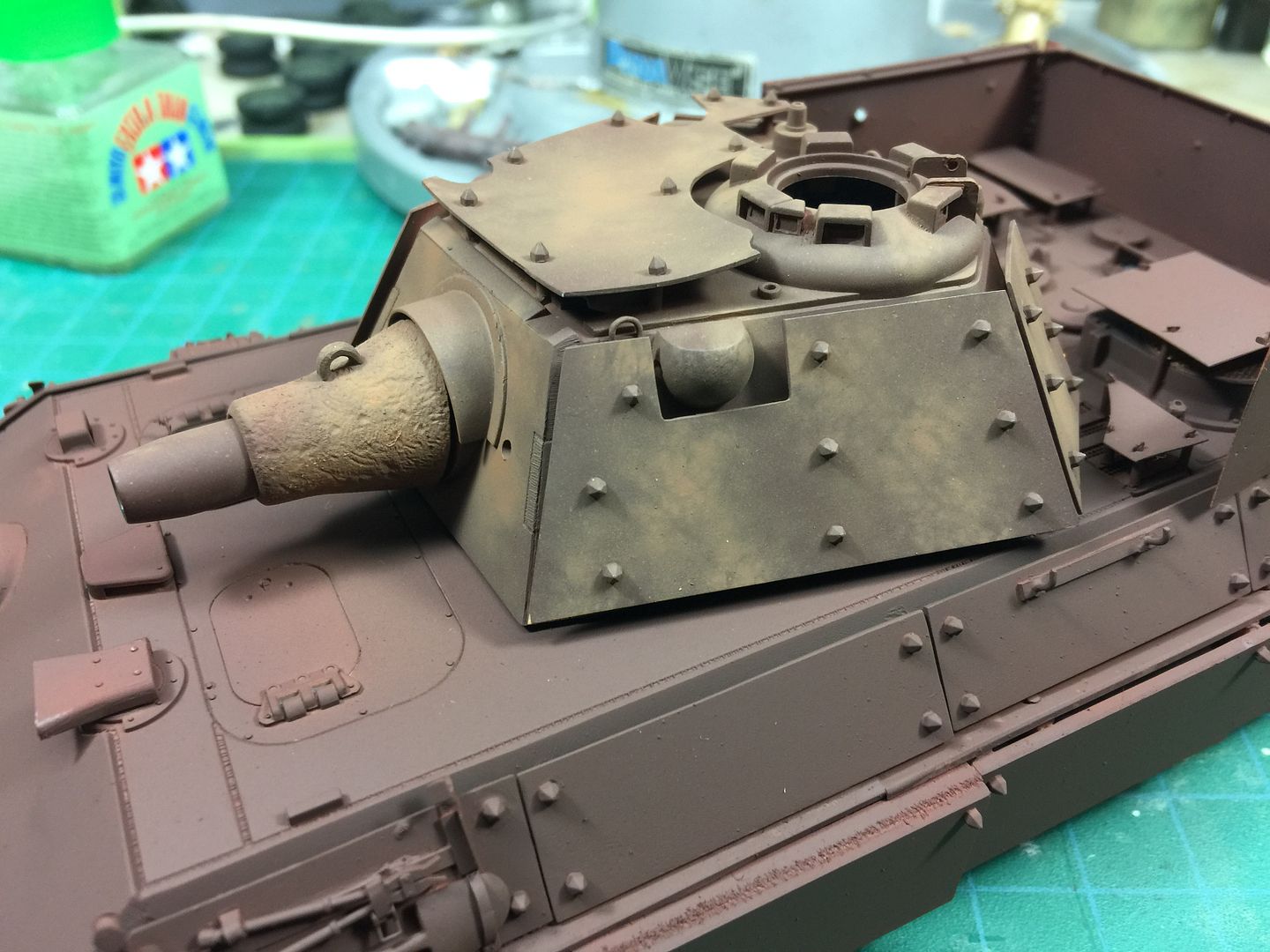

Experimenting with a mottled rust effect I saw on a channel earlier. Using multiple layers of different toned red/browns airbrushed through a thinned scotch bright pad. Hull is in just Tamiya XF-10 flat brown. Turret has successive shades of lighter reddish browns with a final coat ofXF-68 NATO brown with some red, yellow and white added to it. This will dry for a few days, then I'll seal it, use the salt chip method and over spray with a custom mix of RAL 8012 (red primer).





darklen
Visit this Community
Alberta, Canada
Joined: September 16, 2003
KitMaker: 69 posts
Armorama: 67 posts
Posted: Wednesday, June 29, 2016 - 08:52 AM GMT+7
A short video update on the Sturmpanther II and the Panther II (Early).

m4sherman
Visit this Community
Arizona, United States
Joined: January 18, 2006
KitMaker: 1,245 posts
Armorama: 1,196 posts
Posted: Tuesday, June 28, 2016 - 02:07 PM GMT+7
I like the looks of your Panther. Be real careful with that acid, the fumes can harm your lungs.

These would have been handy at Arnhem.
darklen
Visit this Community
Alberta, Canada
Joined: September 16, 2003
KitMaker: 69 posts
Armorama: 67 posts
Posted: Friday, June 24, 2016 - 11:14 PM GMT+7
Tried out a different method of texturing a muffler. Muriatic acid. Etches the aluminum quite quickly but stinky. I had windows open and fans blowing. Added on some Mr. Surfacer 500 on the piping and started the painting/weathering process. Still have a little ways to go with weathering.










darklen
Visit this Community
Alberta, Canada
Joined: September 16, 2003
KitMaker: 69 posts
Armorama: 67 posts
Posted: Monday, June 06, 2016 - 12:23 PM GMT+7

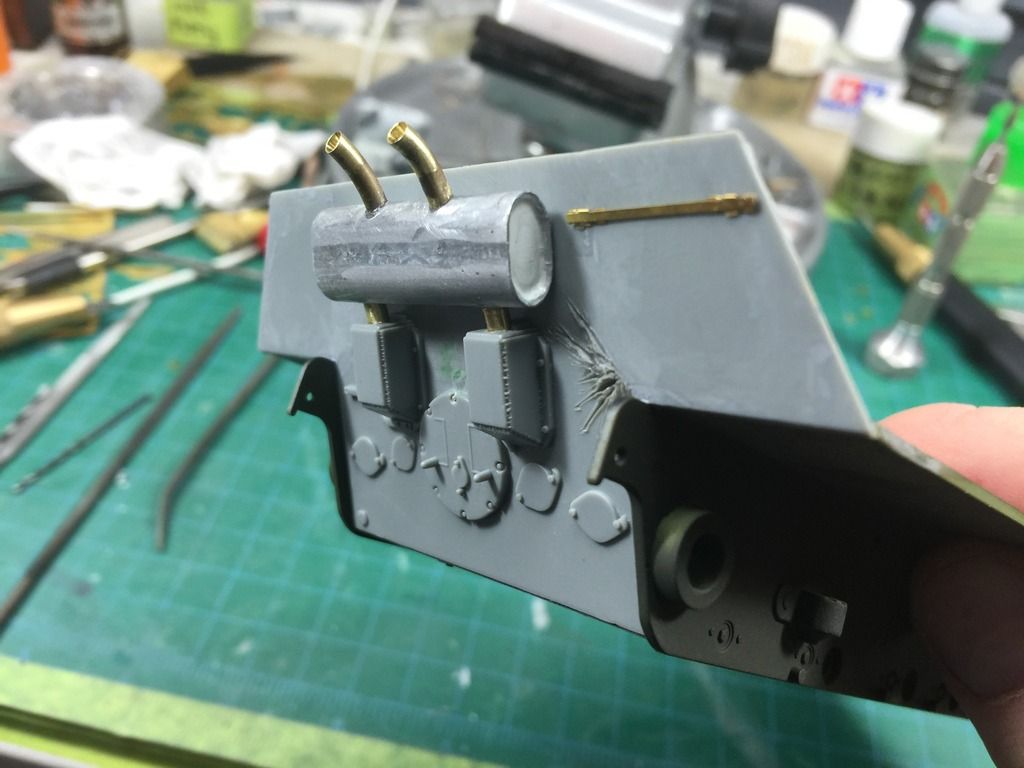

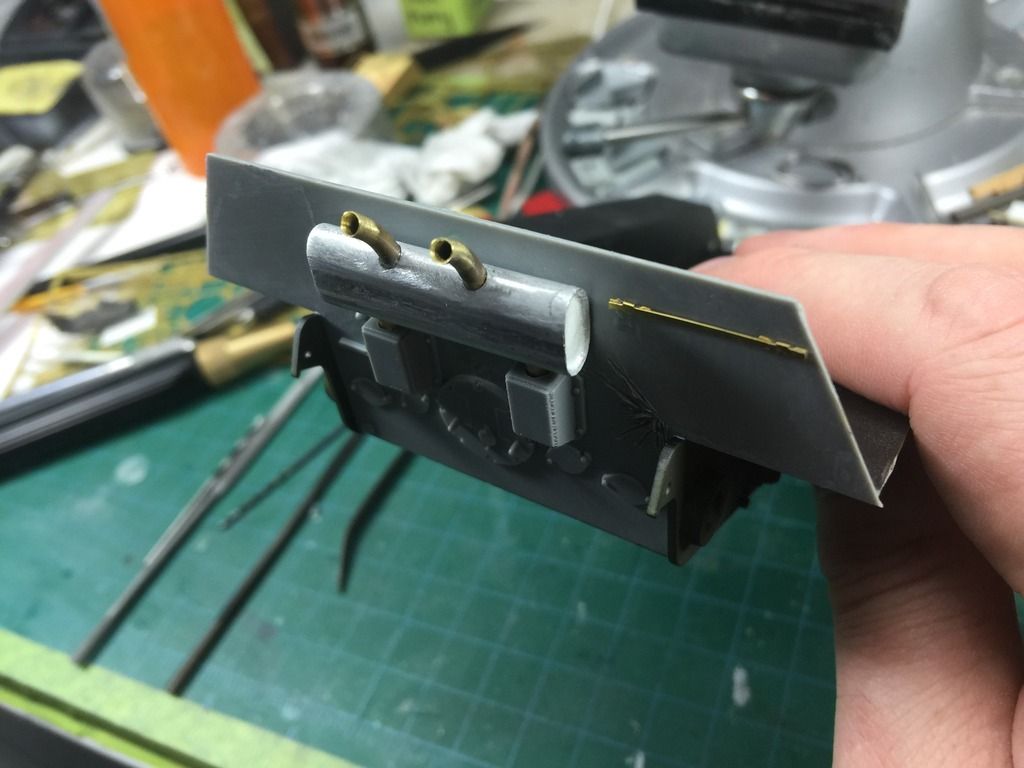

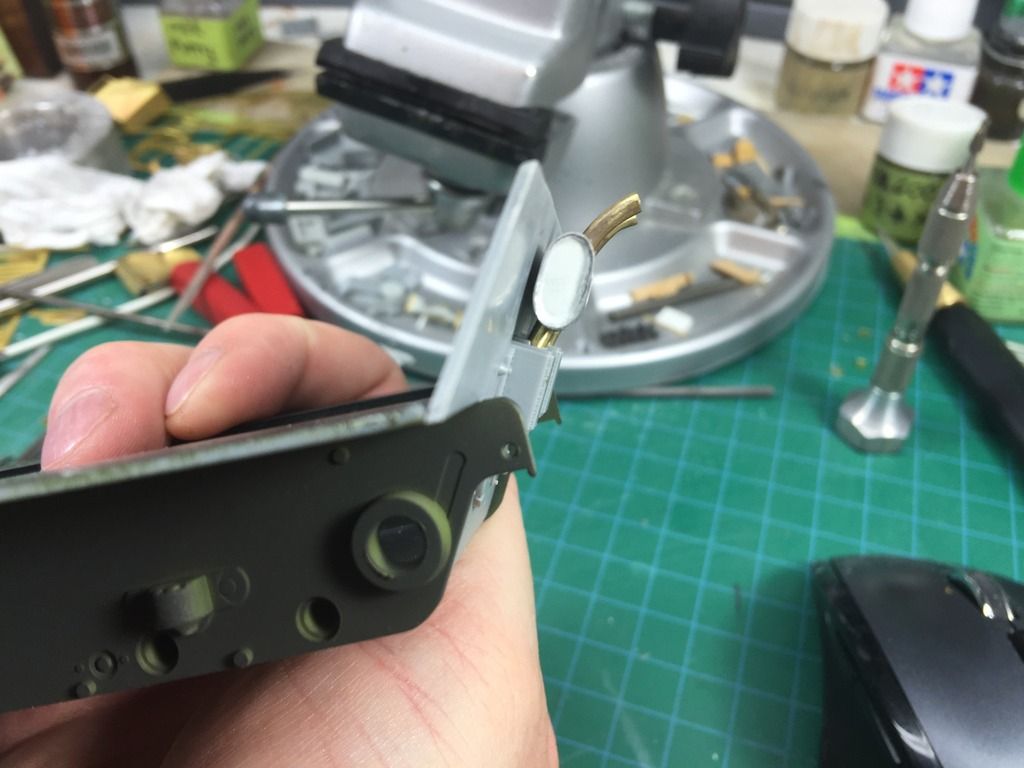

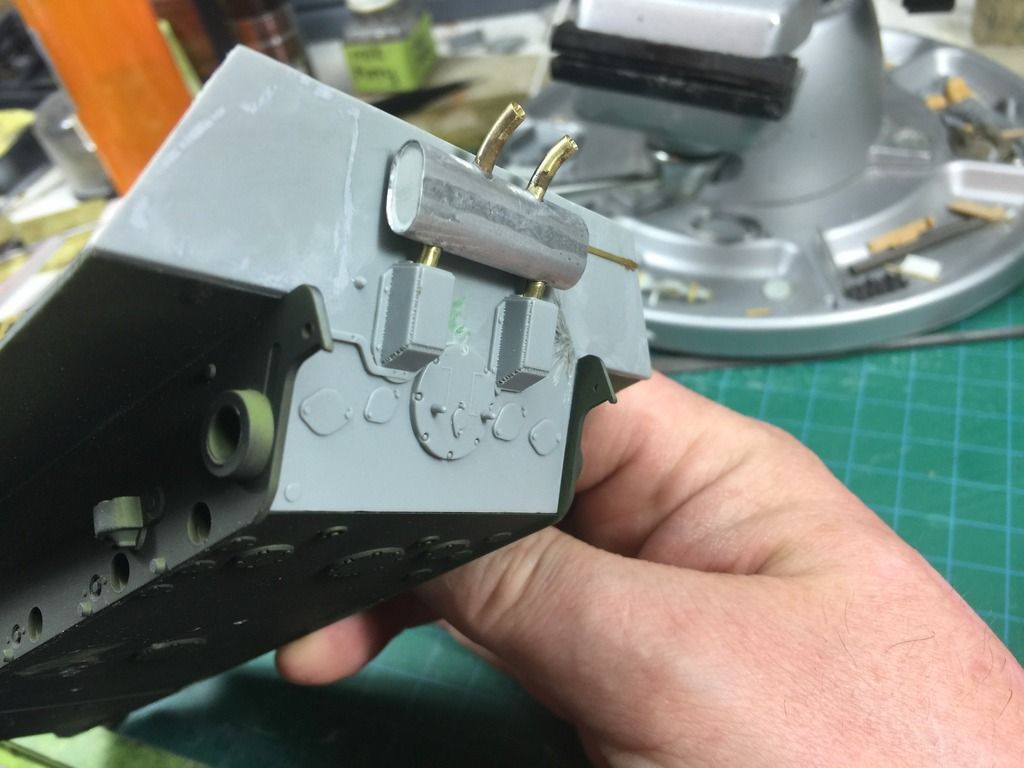

Some better pics of the completed and as yet undamaged Sturmpanther II muffler. Made it by squishing an aluminum tube in a vise until it ovaled just right. End caps are some sheet styrene cut and sanded to shape and glued in with a health dose of Tamiya super thin. Brass tubing was used for inlet and exhaust with the exhaust ends bent in a tubing bender before trimming to shape and glueing in with CA. Exhaust ends were reamed with a conical reamer to thin the edges appropriately. Still have to make hanger brackets as well.

Finished it last night. Went to the hobby shop today for something and found they have preovaled brass tubing in this size about a foot long for like $4.00. Oh well. The thin brass would have been much easier to damage than this thicker aluminum but it's done. Know for next time.




urumomo
Visit this Community
Texas, United States
Joined: August 22, 2013
KitMaker: 611 posts
Armorama: 603 posts
Posted: Sunday, June 05, 2016 - 09:07 AM GMT+7

What's the exhaust look like from side / top ?
ColinEdm
Staff MemberAssociate Editor
ARMORAMA
Visit this Community
Alberta, Canada
Joined: October 15, 2013
KitMaker: 940 posts
Armorama: 922 posts
Posted: Sunday, June 05, 2016 - 04:34 AM GMT+7
Looking real good Bob!
